Lind PA1555i-2194 20 to 60 VDC Input Adapter for Panasonic Toughbook Toughpad

Price: $245.00
MFR: Lind Electronics
MODEL: PA1555i-2194

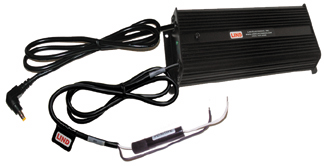

The Lind PA1555I-2194 Power Adapter provides a regulated DC output to power Panasonic laptops and tablets from a DC voltage source. Electrical isolation between input and output prevents ground loops and allows the output to be used as a negative voltage if required. The rugged design of Lind laptop power adapters make them ideally suited for use in harsh mobile environments. The adapter electronics is protected by a rugged Aluminum housing which is filled and sealed with epoxy that protects the electronics from damage due to shock, vibration and spilled liquids.

– Isolated
– 20-60 VDC
– Bare Wire 72″ Input Cable
– 5.5×2.5 75″ Output Cable
– Full continuous rated power output.
– Sealed and potted in aluminum extrusions for the harshest operating environments.
– Isolation Voltage: Input to Output Isolated 500 VDC Input – Output 500 VDC Input – Chassis 100 VDC Output – Chassis
– Oper. Temperature:-40 to +40 degrees celcius

Cables/Accessories Included With This Adapter

Bare wire input cable, 72 inches, Fused 10A, hardwired to adapter CBLIP-F01016
Output cable to computer, 72 inches, hardwired to adapter CBLIO-F00528

Technical information

Input Voltage: 20-60 VDC
Output Voltage: 15 VDC
Output Current: 5.5 amps
Input 1 Connector 1: S/T
Input 1 Connector 2: S/T
Output 1 Connector 1: S/T
Output 1 Connector 2: 2.5mm SM 18V TVS
Input 1 Length: 72 Inches
Output 1 Length: 75 Inches
Size: 9.2" x 3.0" x 1.2"
Weight: 2.3 lbs

Compatibility

PANASONIC TOUGHBOOK 18
PANASONIC TOUGHBOOK 19
PANASONIC TOUGHBOOK 29
PANASONIC TOUGHBOOK 30
PANASONIC TOUGHBOOK 31
PANASONIC TOUGHBOOK 33
PANASONIC TOUGHBOOK 53
PANASONIC TOUGHBOOK 54
PANASONIC TOUGHBOOK C1
PANASONIC TOUGHBOOK C2
PANASONIC TOUGHBOOK F8
PANASONIC TOUGHBOOK H1 FIELD
PANASONIC TOUGHBOOK H1 HEALTH
PANASONIC TOUGHBOOK H2
PANASONIC TOUGHBOOK M32
PANASONIC TOUGHBOOK M33
PANASONIC TOUGHBOOK P1
PANASONIC TOUGHBOOK R1
PANASONIC TOUGHBOOK T1
PANASONIC TOUGHBOOK T2
PANASONIC TOUGHBOOK T4
PANASONIC TOUGHBOOK T5
PANASONIC TOUGHBOOK T7
PANASONIC TOUGHBOOK T8
PANASONIC TOUGHBOOK U1
PANASONIC TOUGHBOOK W2
PANASONIC TOUGHBOOK W4
PANASONIC TOUGHBOOK W5
PANASONIC TOUGHBOOK W7
PANASONIC TOUGHBOOK W8
PANASONIC TOUGHBOOK Y2
PANASONIC TOUGHBOOK Y4
PANASONIC TOUGHBOOK Y5
PANASONIC TOUGHBOOK Y7
PANASONIC TOUGHPAD 4K
PANASONIC TOUGHPAD FZ B2
PANASONIC TOUGHPAD FZ E1
PANASONIC TOUGHPAD FZ G1
PANASONIC TOUGHPAD FZ X1
