VEHICLE MOUNTING

M Rugged Mobile Technology offers Panasonic Toughbook laptop and toughpad tablet computer Vehicle Mounting Installation Services.  Our products can be  efficiently installed into any type of vehicle – Fire trucks, Police cars, Ambulances, military vehicles, even forklifts. using  Your vehicle mechanic, local installer or our installation team.

This service provides your organization with the support needed to make your mobile data deployment successful. Once your organization has selected the Panasonic Toughbook laptop computer models to be deployed, proper vehicle mounting issues need to be considered.



Key considerations:



         Mount effect on the vehicle’s power management system and how it will interact with the mount ( Battery run down, charging voltage and protection)

         Mount functionality and location in the vehicle to enhance user productivity ( No drill seat bolt base, console base, counter base)

         mount Airbag compliance and full access to vehicle  controls



Typically, the components required to mount a Toughbook laptop in a vehicle include a vehicle dock, dock plate, tilt/swival, swing arm,base plate, pole, c, and vehicle power interface.  Additionally, the installation may also require the use of accessories like roof mounting antennas to enhance the wireless wWAN/wlan/gps port replicator pass-through, GPS , radios or satellite radio systems, and mobile video recording systems.



The complete solution is designed to enhance the productivity of your organization’s users in the field. M Rugged Mobile Technology  will provide a complete estimate of products and services that outlines the entire installation process.  Your organization will also be provided with  warranty information on all equipment used in the vehicle installation process.



Toughbook Toughpad Vehicle Mounting

PORT REPLICATOR or CRADLE



A cradle is a secure device that locks your computer in place.

Two kinds of cradles exist:

dedicated cradle designed exclusively for a particular model

universal cradle designed to secure and fit any computer

Port replicators  secures your computer into place, while also providing inputs, or connectors for your computer peripheral devices, such as a scanner, bar code reader, keyboard, mouse, printer, etc.

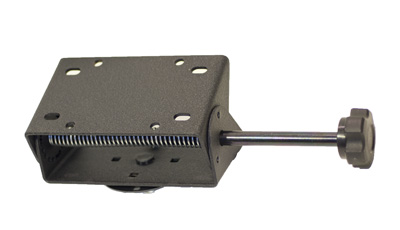

Toughbook Toughpad Vehicle Mounting TILT SWIVAL

Attaches to the end of the top plate, allowing the computer to pivot and tilt and position the keyboard

for user comfort.

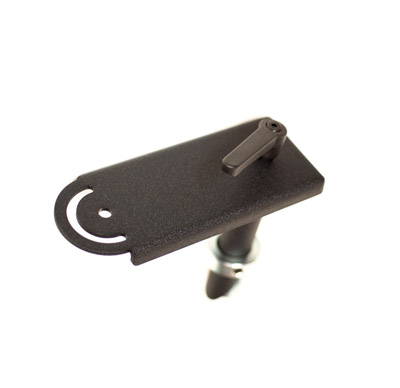

Toughbook Toughpad Vehicle Mounting TOP PLATE

Inserts into the top of the pole, providing a mounting surface for a docking station or cradle. Additionally, top plates allow the docking station to be moved side to side for easier user access. 6" 9" 12" or 15"




Toughbook Toughpad Vehicle Mounting POLE

Provides the necessary height for the mounting system. Standard pole lengths are 9" and 14". Poles are made with sturdy 12-gauge poles and 7-gauge steel plates for bolting to the base.




Toughbook Toughpad Vehicle Mounting
Toughbook Toughpad Vehicle Mounting
BASE - dash , console, or passenger seat mounting



Uses 7- to 11- gauge powder-coated steel—the most durable in the industry. The base secures the mounting solution to the vehicle.



four kinds of bases exist:



Dash Mounting

Passenger Seat

Console

universal  designed to mount to any flat surface, such as the vehicle floor or console box

Most bases can be installed without drilling,






Toughbook Toughpad Vehicle Mounting Electrical ComponentsHavis - ChargeGuard 12V Voltage Sesning Timer Switch

ELECTRICAL

We don’t "tap in" to existing power sources that are used to power your critical systems. We use separate and distinct DC to DC ( No inversion) wiring to power your mobile solution. It’s safer for the operation of your equipment and safer for you. Don't forget the chargeguard to protect against battery rundown and voltage issues







Toughbook Toughpad Vehicle Mounting Antennas

ANTENNAS

Get up to 25% more coverage depending on the areas you travel.  The superior performance of our antennas reaches farther to cell sites and hot spots.  If your job takes you far and wide, we are the antenna for you







Unlike our competitors, we can pre-assemble our mounting equipment so it ships out to your location ready to go. This ensures the installation process moves Quickly and flawlessly.













Panasonic Toughbook / Toughpad  Rugged Docking Solutions
Panasonic laptop vehicle mounting systems. Cradles, port replication, DC power and more.
Displaying products 1 - 11 of 11 results
Havis Heavy Duty Fixed Top Offset Platform, 9" Offset
Price: $32.95
Havis Heavy Duty Fixed Top Offset Platform, 9" Offset
Vehicle mounting Heavy Duty Fixed Top Offset Platform, 9" Offset
Panasonic Toughpad Vehicle Mounting Motion Device
Retrofit Motion Device
Price: $69.95
Retrofit Motion Device
Universal retrofit motion device provides generous tilt in four (4) directions plus 90° rotation for the standard DMM motion device, for increased travel and motion
Canon iP100 Headrest Printer Mount
Price: $119.95
Canon iP100 Headrest Printer Mount
Canon iP100 Headrest Printer Mount - Solve the "Where Do We Put It?" Problem
HP Officejet 100 Headrest Printer Mount
Price: $119.95
HP Officejet 100 Headrest Printer Mount
HP Officejet 100 Headrest Printer Mount
Ruggedjet Headrest Vehicle Mount
Brother Rugged Jet Printer Vehicle Headrest Mount
Price: $119.95
Brother Rugged Jet Printer Vehicle Headrest Mount
Brother Pocketjet Vehicle Headrest Mount Solve the "Where Do We Put It?" Problem
Pockejet Printer Mount to Passenger Headrest
Brother PocketJet Printer Vehicle Headrest Mount
Price: $159.95
Brother PocketJet Printer Vehicle Headrest Mount
Vehicle Headrest Mount for Brother Pocketjet
Zebra RW420 Headrest Printer Mount
Price: $159.95
Zebra RW420 Headrest Printer Mount
Zebra RW420 Headrest Printer Mount - Solve the "Where Do We Put It?" Problem
Brother Pocketjet Vehicle Partition Mount
Brother PocketJet Printer Vehicle Partition Mount
Price: $159.95
Brother PocketJet Printer Vehicle Partition  Mount
Brother Pocketjet Vehicle Partition Mount
Havis 8.5" Heavy Duty Telescoping Pole, Short Handle
Price: $166.95
Havis 8.5" Heavy Duty Telescoping Pole, Short Handle
Heavy duty vehicle mounting telescoping pole with precision machined solid billet aluminum clamp collar
Tablet and Keyboard Vehicle Mount
Heavy Duty Computer Monitor / Keyboard Mount and Motion Device
Price: $329.95
Heavy Duty Computer Monitor / Keyboard Mount and Motion Device
Heavy duty computer monitor / keyboard mount and motion device
