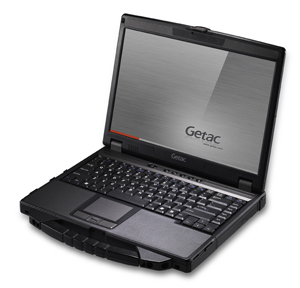

P470 Notebook
|
P470
RUGGED NOTEBOOK
Designed for daily
or rough environments, Getac P470 is built as rugged-ready with
the magnesium alloy case, a shock-protected HDD, a
spill-resistant keyboard and sealed I/O caps and doors. Powered
by Intel® Centrino® Mobile Technology and Core™2 Duo Processor,
the P470 provides the best performance and connectivity: the
WLAN can be instantly switched to an optional built-in 3G
solution to maintain network access without any extended
modules. The P470 is equipped with a 14.1” wide QuadraClear™
sunlight readable touch screen that is adaptable to both outdoor
and indoor usage. In the demanding environments where security
always matters, the P470 has multiple guardian features
including a built-in TPM 1.2 module, a fingerprint scanner and a
smart card reader to provide ultimate data protection.
-
Trusted Platform Module (TPM)
1.2, Fingerprint Scanner and
Smart Card Support
-
Shock-protected Removable
HDD
-
Vibration and Drop-resistant
-
Water-resistant Design
-
Integrated Handle
-
Magnesium Alloy Case
-
Versatile Wireless Access:
WLAN, WWAN, and Bluetooth
-
Media Bay Feature Maximizes
Flexibility and Customized
Applications
-
Optional QuadraClearTM
Sunlight Readable Display
|
Operating System
|
Windows® XP Professional
Windows Vista® Business
|
|
Mobile Computing
Platform
|
Intel® Centrino®
Technology
- Intel® Core™2 Duo
Processor T7200 2.0GHz
- 667 MHz FSB
- 4MB L2 cache
- Mobile Intel® 945GM
chipset
|
|
VGA Controller
|
Intel® Graphics Media
Accelerator 950,
Max. 128MB shared memory
|
|
Display
|
14.1" TFT LCD WXGA (1280
x 800)
Standard display with
protection glass
Optional 500 nits
QuadraClear™ sunlight
readable display
Optional touchscreen
|
|
Storage & Memory
|
"1GB DDR2 expandable to
4GB
SATA HDD 160GB"
|
|
Keyboard
|
Membrane keyboard
Optional project
keyboard lighting
|
|
Pointing Device
|
Touchscreen
- Optional pressure
sensitive touchscreen
Touchpad
- Glide touchpad with
scroll bar
|
|
Expansion Slots
|
PCMCIA Type II x 1
ExpressCard 34/54mm
Multi memory card reader
x 1
|
|
Multimedia Bay
|
DVD super multi drive
Optional 2nd battery
Optional 2nd HDD 160GB
|
|
IO Interface
|
Optional 1.3MB pixels
webcam
Serial port (9-pin;
D-sub) x 1
External VGA (15-pin;
D-sub) x 1
Audio output (Mini-jack)
x 1
Microphone (Mini-jack) x
1
DC in Jack x 1
USB 2.0 (4-pin) x 3
Modem (RJ11) x 1
LAN (RJ45) x 1
IEEE 1394a x 1
External GPS antenna
port (only with optional
GPS) x 1
Docking connector x 1
|
|
Communication Interface
|
10/100/1000 base-T
Ethernet
56K ITU V.92 modem
Intel® PRO/Wireless
3945ABG Network
Connection; 802.11 a/b/g
Bluetooth (v2.0+EDR
class 2)
Optional GPS
Optional EV-DO / GSM /
GPRS / EDGE / UMTS /
HSDPA
|
|
Software
|
Getac Utility
Adobe® Reader®
|
|
Security Feature
|
TPM 1.2
Fingerprint scanner
Kensington lock
Smart card reader
|
|
Power
|
AC adapter (90W,
100-240V, 50 / 60Hz)
Li-Ion smart battery
(4800mAh)
Optional Li-Ion smart
battery (7200mAh)
Optional Media Bay 2nd
Li-Ion smart battery
(3800mAh)
|
|
Dimensions & Weight
|
333 x 254~295 x 42 mm
(13.1" x 10"~11.6" x
1.65")
2.95kg (6.4 lbs)
|
|
Rugged Features
|
MIL-STD-810F vibration,
shock, Thermal shock and
altitude compliance
Magnesium alloy case
Sealed ports and
connectors
Shock-protected
removable HDD
Wide range temperature
and humidity
Drop resistant
|
|
Environmental
Specification
|
Temperature:
- Operating: 0°C to 45°C
/ -32°F to 113°F
- Storage: -40°C to 70°C
/ -40°C to 158°F
Humidity:
- 95% RH, non-condensing
|
**Battery life testing
conducted under BatteryMark
4.0.1. Battery performance
will vary upon software
applications, wireless
settings, power management
settings, LCD brightness,
customized modules and
environmental conditions.
The battery has a limited
number of charge cycles and
may eventually need to be
replaced by a Getac service
provider. Battery life and
charge cycles vary by use
and settings.
|
|
|
